Reolink RLN36
Reolink RLN36 36-Channel 16MP Network Video Recorder
The Reolink RLN36 is a high-capacity 36-channel NVR designed for advanced surveillance across large residential, commercial, or industrial properties. With support for up to 16MP cameras and massive storage potential, it delivers centralized, professional-grade video management with smart detection and remote access.
Key Features

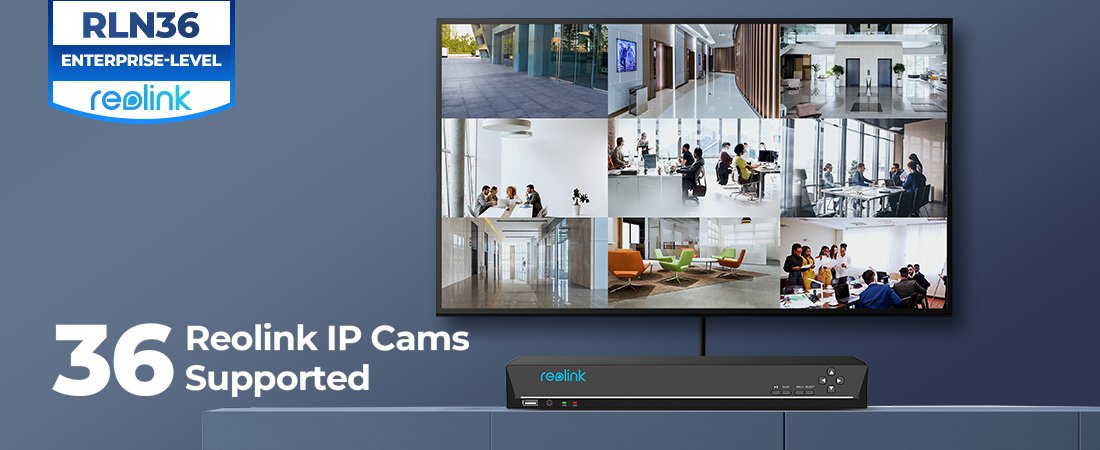

36-Channel IP Support: Connect up to 36 Reolink cameras (excluding dual-lens models) for wide-area security.
Up to 16MP Resolution: Supports ultra-HD recording for exceptional image clarity and detail.
Smart Detection: Accurately identifies people, vehicles, and pets to reduce false alarms.
Massive Storage Capacity: Holds up to three 16TB HDDs (48TB total) for extended 24/7 recording.
Two-Way Audio Support: Includes audio input and output for integration with compatible cameras.
Alarm I/O Integration: Features 8 alarm inputs and 4 outputs for advanced security automation.

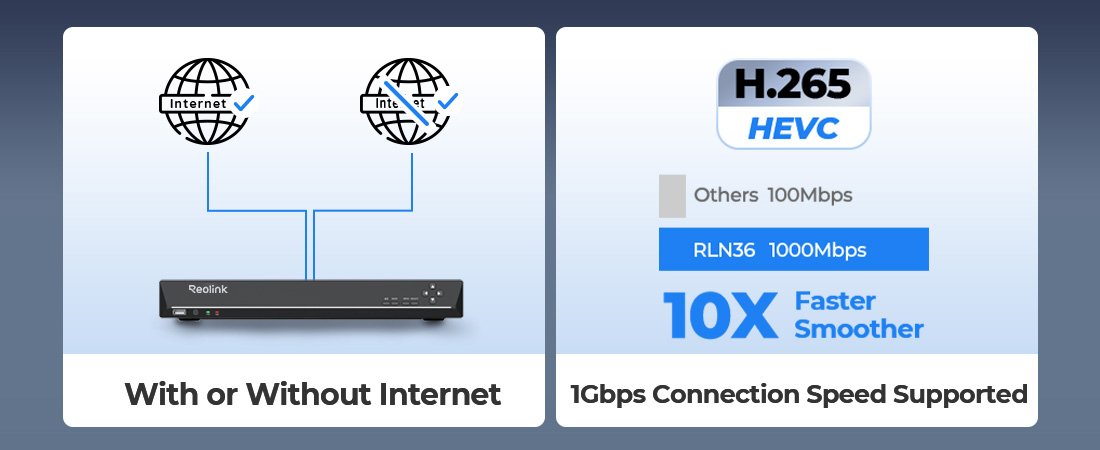

Flexible Network Configuration: Four camera LAN ports and one dedicated LAN/WAN port; requires external PoE switches.
Multi-Channel Display: Dual outputs (HDMI & VGA) support simultaneous display for live viewing and playback.
Remote Monitoring: View and manage footage via Reolink app or desktop client.
Smart Home Compatible: Works with Google Assistant for voice-controlled access.
Specifications
Video Input: 36 IP channels (up to 16MP per channel)
Video Output: 1× HDMI (max 3840×2160), 1× VGA (max 1920×1080)
Audio I/O: 1× RCA in, 1× RCA out
USB Ports: 1× USB 3.0 (rear), 2× USB 2.0 (front and rear)
Ethernet Ports: 4× RJ45 for cameras, 1× RJ45 for LAN/WAN (10/100/1000 Mbps)
Alarm Channels: 8× input, 4× output
Storage: Supports up to 3× SATA HDDs (16TB each, 48TB total); HDDs not included
Video Compression: H.265 / H.264
Power Supply: DC 12V/5.4A
Operating Conditions: -10°C to 45°C (14°F to 113°F); Humidity 10%–90% RH
Dimensions: 330 mm × 310 mm × 48 mm
Weight: 2.26 kg (without HDD)
